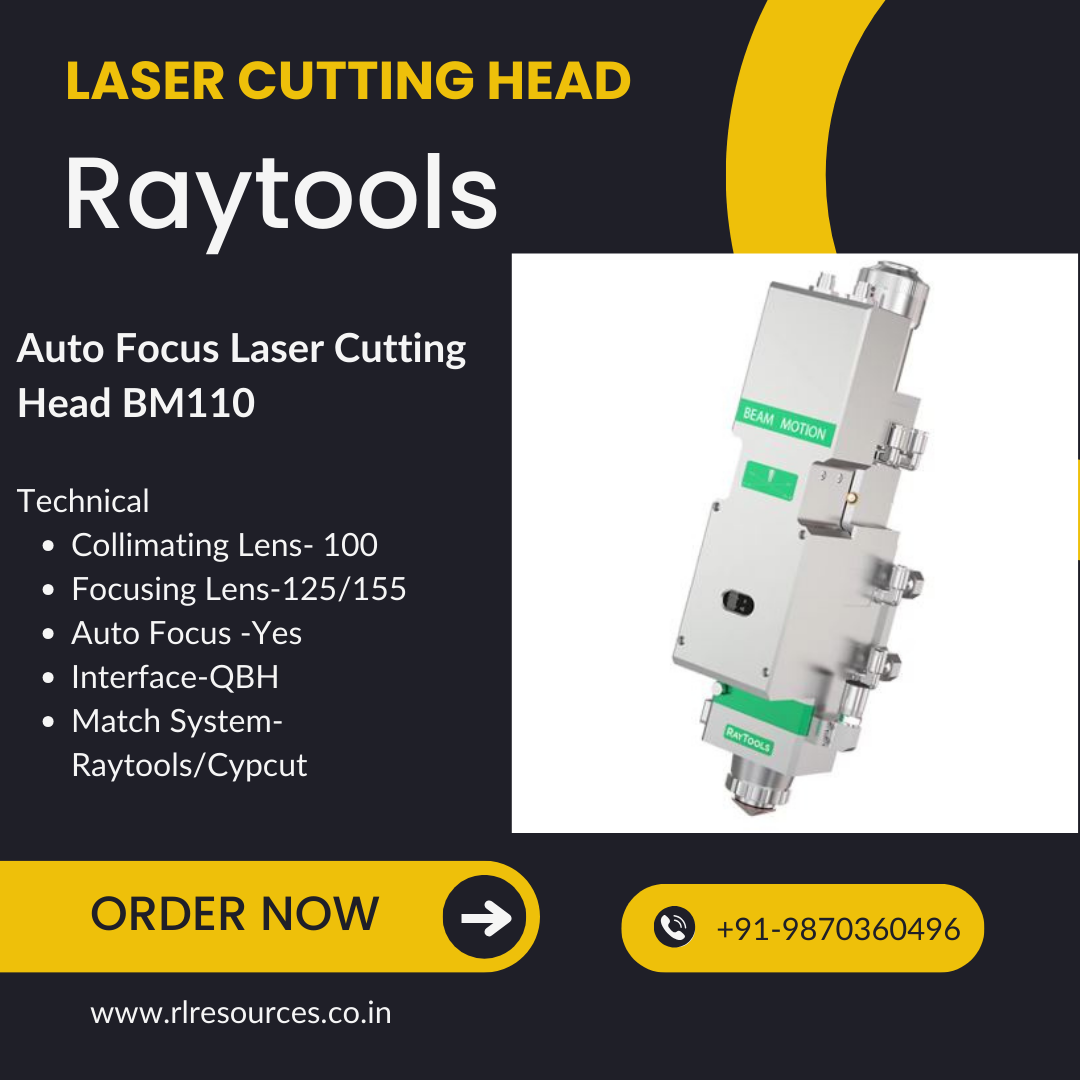

Raytools Auto Focus Laser Cutting Head BM110

Cutting-Edge Design & Performance

This innovative product includes a built-in motor drive unit that automatically adjusts the position of the focus lens in a range of 24mm through a linear mechanism. This feature allows users to set continuous focus, facilitating rapid piercing of thick plates and automatic cutting of different thicknesses and materials.

The BM110 series is equipped with a composite lens group of D30 to integrate the beam. The design of the optics and water cooling is optimized to enable the laser head to operate stably at high power for extended periods.

Features & Specifications

• Superior Design: The cutting head features an optimized optical configuration and efficient airflow design, significantly improving cutting quality and efficiency.

• Automatic Focus: With a focus range of -12 to +10mm and a focusing accuracy of 0.05 mm, the automatic focus feature reduces manual intervention.

• Multiple Protective Lenses: The addition of protective lenses for collimation effectively safeguards the collimation lens.

• Drawer-Type Mirror Holder: This feature allows for quick and easy replacement of protective lenses.

• High Adaptability: Equipped with various fiber interfaces such as QBH, QD, and G5, the cutting head is adaptable to various mainstream lasers.

• Clear Aperture: 28mm

• Auto-Focusing: Range: -12mm to +10mm; Speed: ≤170mm/s; Acceleration: ≤10m/s²; Accuracy: ≤0.05mm

• Protective Lens: Collimation protection: φ24.91.5mm; Focusing protection: φ27.94.1mm

• Auxiliary Gas Pressure: ≤30bar

• Weight: ~5.0kg

• Nozzle Specifications: Single layer, Double layer, Non-standard

• Nozzle Orifice Diameter: Range from 0.8mm to 5.0mm.

The BM110 Series Fiber Optic Cutting Head ensures optimal cutting performance with its cutting-edge technology and design. For quality, precision, and adaptability, choose the BM110 series.
